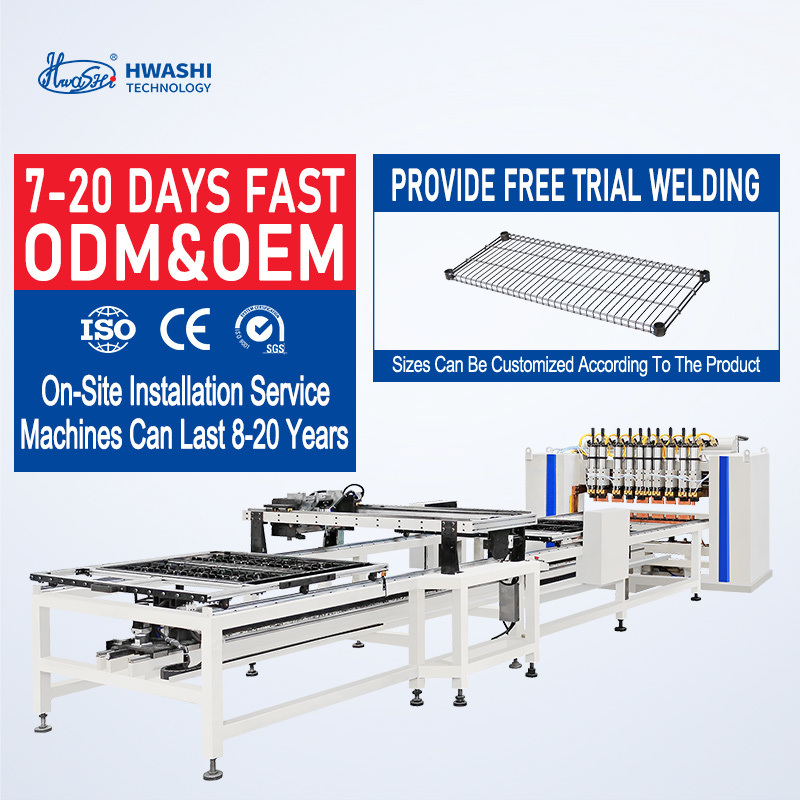

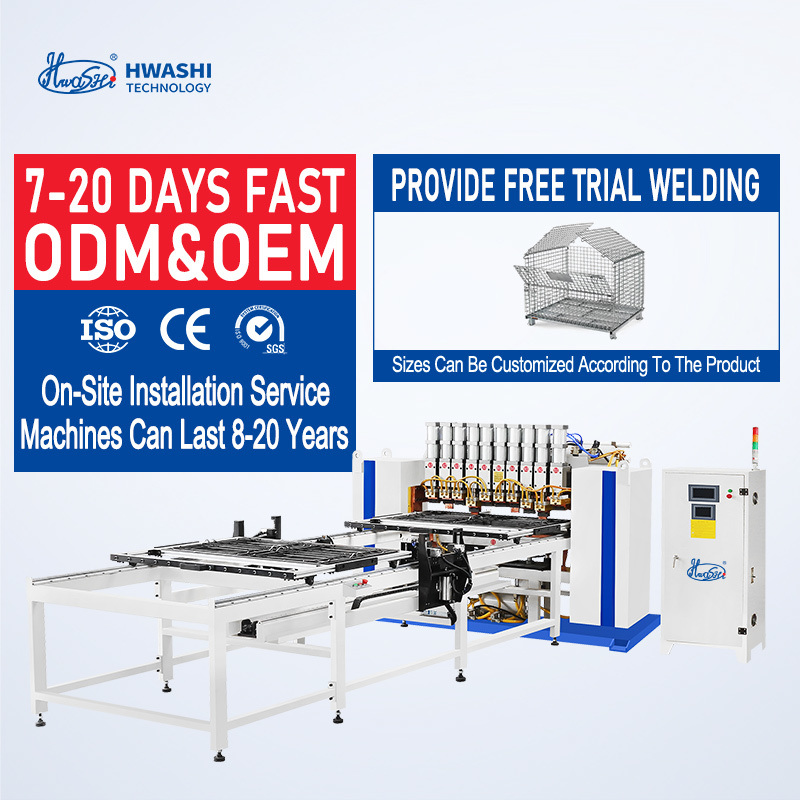

Name: Automatic Wire Mesh Welding Machine with 1 Year Warranty 200mm/S Maximum Wiring Speed and 2D Wire Handle Bending
Brand: GUANGDONG HWASHI TECHNOLOGY INC.
SKU: WL-SQ-MF100K
Price: 30,000.00 USD
Availability: InStock

Σπίτι > Προϊόντα > Μηχανή συγκόλλησης με συρμάτινο πλέγμα >

Automatic Wire Mesh Welding Machine with 1 Year Warranty 200mm/S Maximum Wiring Speed and 2D Wire Handle Bending

Automatic wire mesh welding machine with warranty

Wire mesh welding machine 200mm/s speed

2D wire handle bending welding machine

Τόπος καταγωγής:

Κίνα

Μάρκα:

HWASHI

Πιστοποίηση:

CE/CCC/ISO

Αριθμό μοντέλου:

WL-SQ-MF100K

Μας ελάτε σε επαφή με

Ζητήστε ένα απόσπασμα

Λεπτομέρειες προϊόντων

Μηχανή κάμψης 2D καλωδίου:

Λειτουργία καλωδίων κάμψης για κάμψη καλωδίων 2-6mm

Αποτελεσματικό πλάτος συγκόλλησης:

1200mm

Κατηγορία Προϊόντος:

Μηχανή συγκόλλησης καλωδίων

Όνομα προϊόντος:

ΣΥΣΤΗΜΑ ΕΙΝΑΙ Πηγή Τροφίμων Τριφασικό Σύστημα τροφοδοσίας MF DC για συγκολλητή με σύρμα πλέγματος

Μηχάνημα κοπής άκρων καλωδίου:

Κόβει την άκρη του καλωδίου από το πλαίσιο του καλωδίου για να κάνει την επιφάνεια καθαρή και ομαλή

Μέγιστη ταχύτητα καλωδίωσης:

200mm/s

Αποτελεσματικό μήκος συγκόλλησης:

3000mm

Υψηλή μηχανή ευθυγράμμισης και κοπής υψηλής ταχύτητας:

Κάνει παραγωγή παρτίδας από συρματοπλέγματα 2mm έως 4mm σε σχεδόν 5 φορές την κανονική ταχύτητα

Όροι πληρωμής & ναυτιλίας

Ποσότητα παραγγελίας min

1 σετ

Τιμή

Διαπραγματεύσιμα

Συσκευασία λεπτομέρειες

Sea Worthy Wood Package

Χρόνος παράδοσης

7-30 εργάσιμες ημέρες μετά την παραλαβή της πληρωμής σας

Όροι πληρωμής

L/C,T/T

Δυνατότητα προσφοράς

50 σετ το μήνα

Σχετικά προϊόντα

Βίντεο

Automatic Wire Mesh Welding Machine with 1 Year Warranty 200mm/S Maximum Wiring Speed and 2D Wire Handle Bending

Πάρτε την καλύτερη τιμή

Βίντεο

Automatic Wire Mesh Welding Machine with 1 Year Warranty 200mm/S Maximum Wiring Speed and 2D Wire Handle Bending

Πάρτε την καλύτερη τιμή

Βίντεο

Automatic Wire Mesh Welding Machine with 1 Year Warranty 200mm/S Maximum Wiring Speed and 2D Wire Handle Bending

Πάρτε την καλύτερη τιμή

Βίντεο

Automatic Wire Mesh Welding Machine with 1 Year Warranty Double-Layer Feeder and Automatic Wire Filling System

Πάρτε την καλύτερη τιμή

Μας ελάτε σε επαφή με

+86-13380655800

export_trade@hwashi.com

86-752-3528326

Επαφή τώρα

Περιγραφή προϊόντων

Automatic Wire Mesh Welding Machine with 1 Year Warranty 200mm/S Maximum Wiring Speed and 2D Wire Handle Bending

Double-Layer Feeder and Automatic Wire Filling System

Product Overview

The Automatic Wire Mesh Welding Machine is a cutting-edge industrial equipment engineered to streamline the production of high-quality wire meshes with minimal human intervention. Integrating a precision double-layer feeder and an intelligent automatic wire filling system, this machine is tailored for large-scale manufacturing scenarios such as construction reinforcement mesh, fence mesh, filter mesh, and gabion mesh production. Backed by a 1-year comprehensive warranty, it offers businesses reliable performance, reduced operational costs, and enhanced production efficiency, making it an indispensable asset for modern wire mesh processing facilities.

Core Features & Competitive Advantages

Double-Layer Feeder System for High Efficiency: Equipped with a specialized double-layer feeder, the machine enables simultaneous feeding of two sets of wires (longitudinal and transverse) with independent tension control. This design not only doubles the single-pass processing capacity compared to traditional single-layer feeders but also ensures consistent wire spacing (adjustable from 20mm to 200mm) and smooth feeding without jamming.
Intelligent Automatic Wire Filling System: The integrated automatic wire filling system features a high-capacity wire storage bin (500kg capacity) and a photoelectric sensing device that monitors wire stock in real-time. When the wire level drops below the preset threshold, the system automatically initiates the filling process—eliminating manual wire replenishment and reducing production downtime by over 30%.
Precision Welding & Stable Performance: Adopting medium-frequency DC welding technology (50-500A adjustable output current), the machine delivers uniform welding current and strong weld joints with high tensile strength (≥95% of the base wire strength). The digital welding control system allows precise adjustment of welding time (0.01s-1.0s) and pressure, ensuring consistent weld quality.
Full Automation & User-Friendly Operation: From wire feeding, positioning, welding to mesh cutting and discharging, the entire production process is fully automated. The 7-inch color touchscreen HMI provides intuitive parameter setting and real-time production monitoring, with storage for up to 50 sets of production parameters.

Specifications

Model	WL-TSP-100/150K
Input Power (V/φ)	380/3
Rated Power (KVA)	100/150
Applicable Material	Stainless Steel, Carbon steel, Aluminum, Metal
Electrode Force (KG)	250-400
Welding Thickness (MM)	1-5mm
Warranty	1 year
Mesh Welding Range	1000mm * 1000mm

The Three-Phase MF DC Power Supply System delivers precise, stable DC output through three-phase input, optimized for industrial wire mesh production. Operators can prepare materials for next welding while current work continues, reducing labor costs and maximizing efficiency.

Key Features

Intelligent welding control system with automatic coordinate and current input
Core components: PLC, Engine, Motor for reliable operation
Wire frame bending capability for square shape wire frames
Dual power options: Three-phase MF DC or two-phase AC supply
Automatic wire filling system for continuous operation
Customizable dimensions to match specific product requirements
1200mm effective welding width for large mesh products
Automatic double-layer feeder for improved productivity

Technical Parameters

Product Name	Wire Mesh Welding Machine
Welding Power Source	Three-phase MF DC or two-phase AC power supply
High Speed Wire Processing	5* normal speed for 2mm to 4mm wires
2D Wire Handle Bending	2-6mm wire bending capability

Applications

Ideal for manufacturing wire mesh fences, cages, grids, and shelves. Capable of welding various wire diameters and mesh sizes with 3000mm effective length and 1200mm width. Features full-automatic stainless steel mesh welding with multiple simultaneous welding heads for high-volume production.

Ordering Information

Delivery: 7-30 working days after payment

Packaging: Sea-worthy wooden case

Capacity: 50 sets/month

Payment: L/C or T/T negotiable
