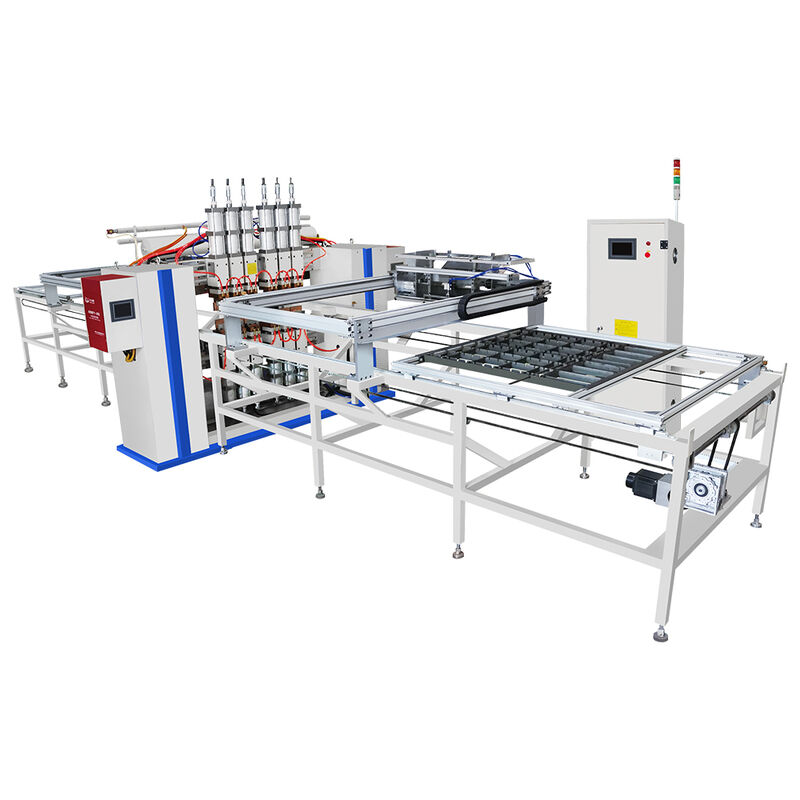

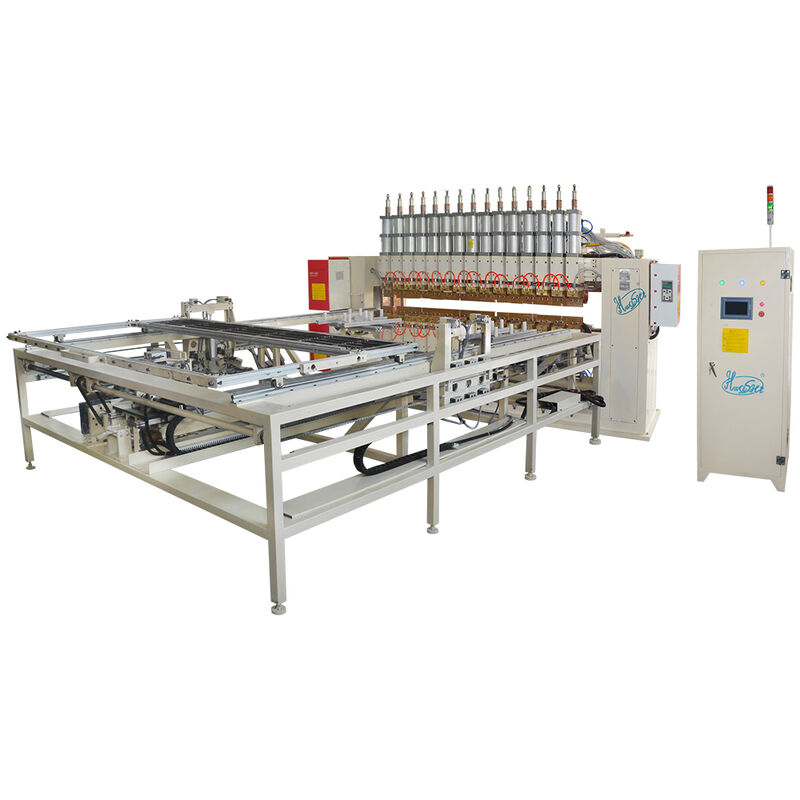

High Speed Welding PLC Control Automatic Wire Tube Condenser Production Line Machine and Welding and Bending Machine

High Speed Welding PLC Control Automatic Wire Tube Condenser Production Line Machine and Welding and Bending Machine

High Speed Welding Wire Tube Condenser Production Line Machine

PLC Control Welding and Bending Machine

Automatic Operation Refrigerator Condenser Production Line

Τόπος καταγωγής:

Κίνα

Μάρκα:

Hwashi

Πιστοποίηση:

CE

Αριθμό μοντέλου:

Wl-τετράγωνος-250K

Μας ελάτε σε επαφή με

Ζητήστε ένα απόσπασμα
Λεπτομέρειες προϊόντων
Μέγεθος πλέγματος:
50-200mm
Ταχύτητα συγκόλλησης:
Υψηλή ταχύτητα
Λειτουργία:
Αυτόματο/εγχειρίδιο
Διχτυωτό σχήμα:
Καλάθι καλωδίων, πλέγμα καλαθιών
Διάμετρος σύρματος:
0.22.5mm (σύμφωνα με τη δύναμη)
σύστημα ελέγχου:
Έλεγχος PLC
Χωρητικότητα ισχύος:
υψηλή χωρητικότητα
Όνομα προϊόντος:
Μηχανή συγκόλλησης πλέγματος καλαθιών καλωδίων
Όροι πληρωμής & ναυτιλίας
Ποσότητα παραγγελίας min
1
Τιμή
$20000-$50000
Συσκευασία λεπτομέρειες
ΞΥΛΙΝΟ ΚΟΥΤΙ
Χρόνος παράδοσης
30-60 ημέρες
Όροι πληρωμής
T/T,L/C
Δυνατότητα προσφοράς
10 σετ/μήνα
Περιγραφή προϊόντων
Refrigerator Wire Tube Condenser Production Line Machine
Specialized production line designed for manufacturing condensers made of wires and serpentine bundy tubes. This comprehensive system includes welding and bending machines for complete condenser production.
High Speed Welding PLC Control Automatic Wire Tube Condenser Production Line Machine and Welding and Bending Machine 0
Production Line Components
  • High speed wire straightening and cutting machine
  • Tube straightening and cutting machine
  • Tube bending machine
  • Automatic condenser welding machine
  • Additional equipment: tube end expanding/shrinking machine, condenser folding machine
We design complete production lines according to your product drawings and efficiency requirements. Simply provide your product specifications and output rate needs, and our engineers will develop the most suitable proposal.
Production Process
High Speed Welding PLC Control Automatic Wire Tube Condenser Production Line Machine and Welding and Bending Machine 1 High Speed Welding PLC Control Automatic Wire Tube Condenser Production Line Machine and Welding and Bending Machine 2
Condenser Specifications
Wire diameter 1.1-1.5mm
Bundy Tube Diameter 4.76/6.35/8mm
Bundy Tube Radius R15/R50/R100
Width range 420-600mm (customized)
Length range 450-1200mm (customized)
Production Line Images
High Speed Welding PLC Control Automatic Wire Tube Condenser Production Line Machine and Welding and Bending Machine 3 High Speed Welding PLC Control Automatic Wire Tube Condenser Production Line Machine and Welding and Bending Machine 4 High Speed Welding PLC Control Automatic Wire Tube Condenser Production Line Machine and Welding and Bending Machine 5
Additional Production Line Equipment
We design complete full automatic or semi-automatic production line machines for refrigerator condensers.
High Speed Welding PLC Control Automatic Wire Tube Condenser Production Line Machine and Welding and Bending Machine 6 High Speed Welding PLC Control Automatic Wire Tube Condenser Production Line Machine and Welding and Bending Machine 7 High Speed Welding PLC Control Automatic Wire Tube Condenser Production Line Machine and Welding and Bending Machine 8
Automatic Wire Filling System
Precut straight wires are loaded into the hopper, and the wire filling machine automatically fills wires into the fixture. This system increases working efficiency and reduces labor requirements.
High Speed Welding PLC Control Automatic Wire Tube Condenser Production Line Machine and Welding and Bending Machine 9
Automatic Double-layer Feeder
While one fixture undergoes welding, the wire filling system simultaneously loads wires onto the other fixture. Upon welding completion, the feeder automatically exchanges fixtures, significantly increasing production efficiency.
Technical Specifications
  • Product Name: Refrigerator Wire Tube Condenser Production Line Machine, Welding and Bending Machine
  • Weight: 500-1000KG
  • Welding Accuracy: High Precision
  • Welding Speed: High Speed
  • Wire Diameter: 0.2-2.5mm (According to Power)
Applications
This versatile wire mesh welding equipment is essential for various industrial applications including construction, agriculture, fencing, and industrial settings. The machine's high precision welding capability creates durable wire mesh panels that meet specific size and shape requirements.
Manufactured in China with CE certification, ensuring high quality and safety standards. Available with flexible payment terms (T/T and L/C) and delivery within 30-60 days. Supply capacity of 10 sets per month.
Operating on AC power supply with both automatic and manual operation modes, this equipment offers production flexibility while maintaining consistent, reliable results for all wire mesh applications.
